4.2MPa 5.6MPa FM 200 Fixed Fire Extinguishing System Environmentally Friendly

    Buy cheap 4.2MPa 5.6MPa FM 200 Fixed Fire Extinguishing System Environmentally Friendly from wholesalers

    Buy cheap 4.2MPa 5.6MPa FM 200 Fixed Fire Extinguishing System Environmentally Friendly from wholesalers
    • Buy cheap 4.2MPa 5.6MPa FM 200 Fixed Fire Extinguishing System Environmentally Friendly from wholesalers
    • Buy cheap 4.2MPa 5.6MPa FM 200 Fixed Fire Extinguishing System Environmentally Friendly from wholesalers

    4.2MPa 5.6MPa FM 200 Fixed Fire Extinguishing System Environmentally Friendly

    Ask Lasest Price
    Brand Name : Rongxiao
    Model Number : QMQ5.6/180N,qmq4.2/180N
    Certification : CAL,CMA,CNAS,,CCC
    Price : Negotiation
    Payment Terms : L/C, D/P, Western Union, T/T, Credit card
    Supply Ability : 18000 sets per week
    Delivery Time : 10 days, subject to quantity negotiation
    • Product Details
    • Company Profile

    4.2MPa 5.6MPa FM 200 Fixed Fire Extinguishing System Environmentally Friendly

    Environmentally friendly FM200 MPa4.2 MPa5.6 fixed fire extinguishing system


    Product description


    Heptafluoropropane HFC-227ea (also known as FM200, chemical molecular formula: CF3CHFCF3) is a colorless, odorless, non-corrosive, low toxic, non-conductive, high fire extinguishing efficiency gas, clean and pollution-free, and has no destructive effect on the atmospheric ozone layer (ozone depletion potential ODP is zero). At present, heptafluoropropane is considered as an ideal gas fire extinguishing system to replace alkylogen 1211 and 1301 fire extinguishing systems,It has been widely used in the world.


    Internal structure

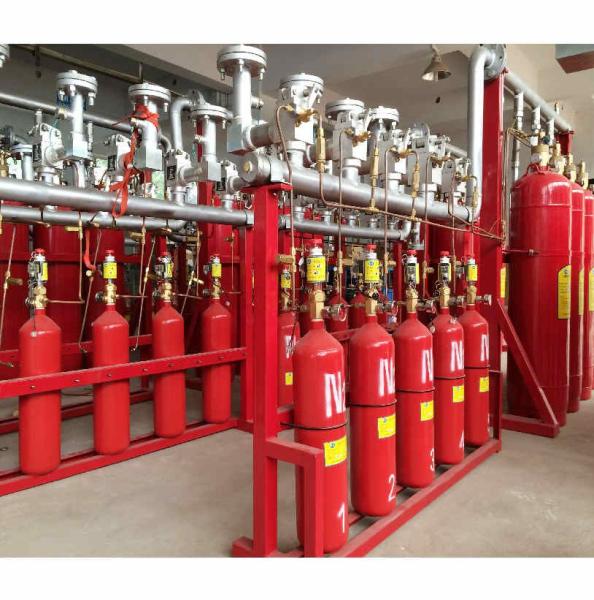

    The internal pressure storage type HFC-227ea fire extinguishing system should at least consist of fire extinguishing agent bottle group, driving gas bottle group, one-way valve, selection valve (applicable to combined distribution system), driving device, manifold, connecting pipe, nozzle, signal feedback device, safety relief device, control panel, leak detection device, low leakage and high sealing valve (applicable to systems with driving gas bottle group), pipelines and fittings, etc.


    Applied range

    Heptafluoropropane fire extinguishing agent can extinguish the following firesThe heptafluoropropane fire extinguisher can't put out the fire of the following substances
    • Electrical fire
    • Fire on solid surface
    • Liquid fire
    • Gas fire that can cut off the gas source before extinguishing the fire
    • Nitrocellulose, sodium nitrate and other oxidants or chemical products containing oxidants fire.
    • Fire of active metals such as potassium, magnesium, sodium, titanium, pickaxe and uranium.
    • Metal hydride fire such as potassium hydride and sodium hydride
    • Fire caused by chemical substances that decompose by themselves, such as hydrogen peroxide and hydrazine.
    • Deep fire of combustible solid matter

    Main product parameters:

    Design working pressure(20℃)(MPa)4.2/5.6
    Fire extinguisher injection time(s)≤10
    System operating temperature(℃)0~50
    System operating voltage(V)DC24
    System working current(A)1.5
    Driving gas bottle group filling pressure(20℃)(MPa)6.0

    Company introduction:

    Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.


    Frequently asked questions:

    Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.

    Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.

    Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
