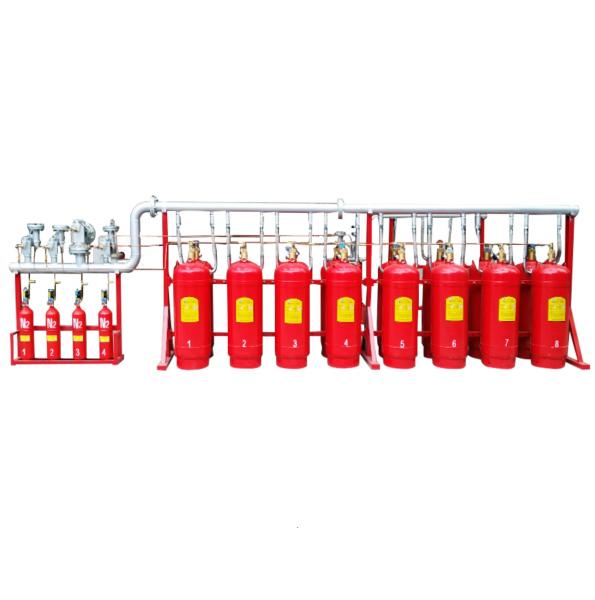

FM200 fire extinguishing system HFC227ea heptafluoropropane fire
extinguishing system
Main product parameters:
| Design working pressure(20℃)(MPa) | 4.2/5.6 |
| Fire extinguisher injection time(s) | ≤10 |
| System operating temperature(℃) | 0～50 |
| System operating voltage(V) | DC24 |
| System working current(A) | 1.5 |
| Driving gas bottle group filling pressure(20℃)(MPa) | 6.0 |
Product description:
Heptafluoropropane HFC-227ea (also known as FM200, chemical
molecular formula: CF3CHFCF3) is a colorless, odorless,
non-corrosive, low toxic, non-conductive, high fire extinguishing
efficiency gas, clean and pollution-free, and has no destructive
effect on the atmospheric ozone layer (ozone depletion potential
ODP is zero). At present, heptafluoropropane is considered as an
ideal gas fire extinguishing system to replace alkylogen 1211 and
1301 fire extinguishing systems,It has been widely used in the
world.
Applied range:
| Heptafluoropropane fire extinguishing agent can extinguish the
following fires | The heptafluoropropane fire extinguisher can't put out the fire of
the following substances |
- Electrical fire
- Fire on solid surface
- Liquid fire
- Gas fire that can cut off the gas source before extinguishing the
fire
| - Nitrocellulose, sodium nitrate and other oxidants or chemical
products containing oxidants fire.
- Fire of active metals such as potassium, magnesium, sodium,
titanium, pickaxe and uranium.
- Metal hydride fire such as potassium hydride and sodium hydride
- Fire caused by chemical substances that decompose by themselves,
such as hydrogen peroxide and hydrazine.
- Deep fire of combustible solid matter
|

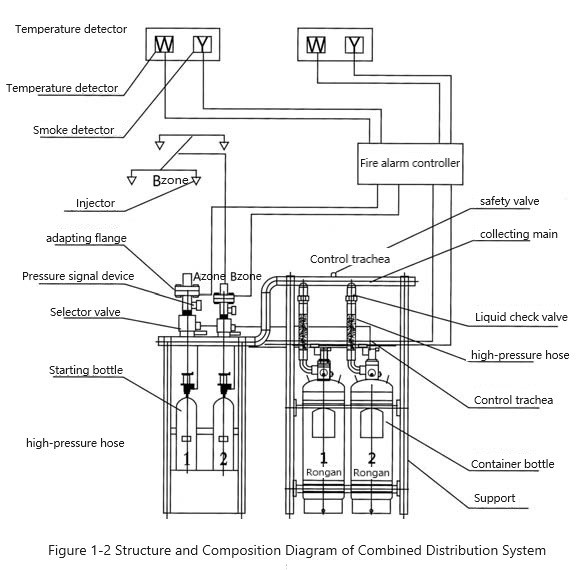

System classification composition:
The heptafluoropropane gas fire extinguishing system is a totally
submerged fire extinguishing system, which is mainly composed of
fire detection system (fire detector, alarm controller), fire
extinguishing control system (gas fire extinguishing control panel,
audible and visual alarm, emergency start/stop button, etc.) and
gas fire extinguishing system. Gas fire extinguishing system is
mainly divided into unit independent system and combined
distribution system. Unit independent system: a heptafluoropropane
supply source, which protects a single protected area or protected
object through a fixed pipe network and nozzles. The system can
start all seven-gas propane fire extinguishing agent bottle groups
with one driving gas bottle group without setting a selection
valve, and the combined distribution system: a seven-gas propane
supply source protects two or more protected areas or protected
objects through a regional selection valve, a fixed pipe network
and nozzles.
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a
professional manufacturer of fire protection facilities integrating
R&D, production, design and sales services. The company has
experts from the national fire protection industry standards
committee and a group of professional technical service teams with
more than ten years of experience in the fire protection industry,
and will spare no effort to provide you with the most intimate and
professional comprehensive technical solutions for fire protection
engineering products. "Rongxiao" series products produced by the
company have passed the national compulsory product certification
and the national fixed fire extinguishing system inspection center,
with reliable quality and stable performance, and the factory has
passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are
manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be
negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we
will provide you with a remote emergency plan during working hours.
During the free maintenance period, the company will replace spare
parts or complete machines that have failed due to defects or
quality problems free of charge.
