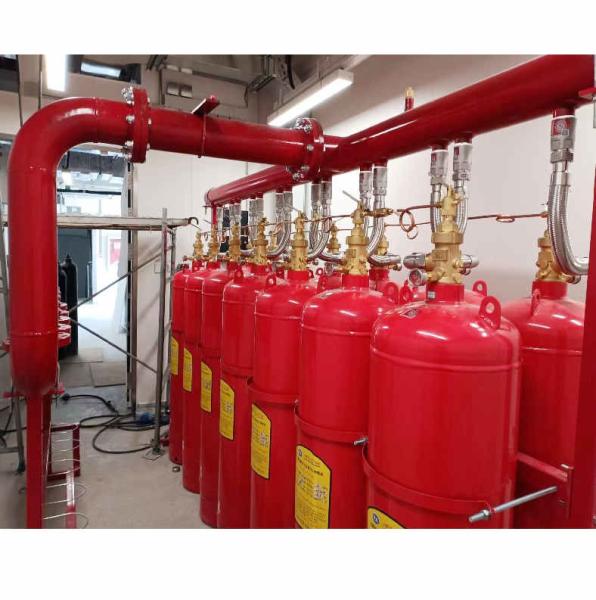

FM200 gas high efficiency fire extinguishing system AC 220V DC 24V
1.5A
Product description
Heptafluoropropane HFC-227ea (also known as FM200, chemical
molecular formula: CF3CHFCF3) is a colorless, odorless,
non-corrosive, low toxic, non-conductive, high fire extinguishing
efficiency gas, clean and pollution-free, and has no destructive
effect on the atmospheric ozone layer (ozone depletion potential
ODP is zero). At present, heptafluoropropane is considered as an
ideal gas fire extinguishing system to replace alkylogen 1211 and
1301 fire extinguishing systems,It has been widely used in the
world.
Basic parameters
| Specifications | Volume(L) | Nominal diameter of container valve(mm) | Bottle group height H(mm) | Bottle group outer diameter D(mm) |
| QMP70/4.2 | 70 | DN32 | 1280 | Φ325 |
| QMP90/4.2 | 90 | DN32 | 1515 | Φ325 |
| QMP120/4.2 | 120 | DN40 | 1345 | Φ415 |
| QMP150/4.2 | 150 | DN40 | 1390 | Φ465 |
| QMP180/4.2 | 180 | DN50 | 1380 | Φ520 |
| Maximum working pressure (50℃): 5.3MPa; filling pressure (20℃):
4.2MPa; maximum filling density ≤950Kg/mm³ |
| Specifications | Volume(L) | Nominal diameter of container valve(mm) | Bottle group height H(mm) | Bottle group outer diameter D(mm) |
| QMP70/5.6 | 70 | DN32 | 1257 | Φ370 |
| QMP90/5.6 | 90 | DN32 | 1494 | Φ370 |
| QMP100/5.6 | 100 | DN32 | 1494 | Φ370 |
| QMP120/5.6 | 120 | DN32 | 1337 | Φ370 |
| QMP150/5.6 | 150 | DN40 | 1375 | Φ470 |
| QMP180/5.6 | 180 | DN40 | 1401 | Φ470 |
| Maximum working pressure (50℃): 8MPa; filling pressure (20℃):
5.6MPa; maximum filling density ≤1080Kg/m³ |
Application areas
This device is mainly suitable for the following fires:
1) Solid surface fires;
2) Liquid fires;
3) Gas fires that can cut off the gas source before extinguishing
the fire;
4) Electrical fires;
Typical reference places:
It is mainly suitable for fire protection in key places such as
computer rooms, data processing centers, telecommunications
facilities, process control centers, expensive medical facilities,
valuable industrial equipment, museums and art galleries,
libraries, archives, valuables warehouses, emergency power
facilities, flammable liquid storage areas, clean workshops, etc.
It can also be used in production operations where fire is
dangerous, such as paint production lines, electrical aging rooms,
rolling mills, printing presses, melting tanks, drying equipment,
coal powder silos in cement production processes, as well as ship
cabins and cargo holds, etc.
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a
professional manufacturer of fire protection facilities integrating
R&D, production, design and sales services. The company has
experts from the national fire protection industry standards
committee and a group of professional technical service teams with
more than ten years of experience in the fire protection industry,
and will spare no effort to provide you with the most intimate and
professional comprehensive technical solutions for fire protection
engineering products. "Rongxiao" series products produced by the
company have passed the national compulsory product certification
and the national fixed fire extinguishing system inspection center,
with reliable quality and stable performance, and the factory has
passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are
manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be
negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we
will provide you with a remote emergency plan during working hours.
During the free maintenance period, the company will replace spare
parts or complete machines that have failed due to defects or
quality problems free of charge.
