    Heptafluoropropane FM200 Gas Fire Extinguishing System 4.2Mpa / 5.6Mpa Working Pressure

    Ask Lasest Price
    Brand Name : Rongxiao
    Model Number : 70L,90L,120L,150L,180L
    Certification : CAL,CMA,CNAS,,CCC
    Price : Negotiation
    Payment Terms : L/C, D/P, Western Union, T/T, Credit card
    Supply Ability : 18000 sets per week
    Delivery Time : 10 days, subject to quantity negotiation
    • Product Details
    • Company Profile

    Heptafluoropropane FM200 Gas Fire Extinguishing System 4.2Mpa / 5.6Mpa Working Pressure

    Convenient monitoring of FM200 gas fire extinguishing system 4.2 / 5.6Mpa


    Product description


    Heptafluoropropane HFC-227ea (also known as FM200, chemical molecular formula: CF3CHFCF3) is a colorless, odorless, non-corrosive, low toxic, non-conductive, high fire extinguishing efficiency gas, clean and pollution-free, and has no destructive effect on the atmospheric ozone layer (ozone depletion potential ODP is zero). At present, heptafluoropropane is considered as an ideal gas fire extinguishing system to replace alkylogen 1211 and 1301 fire extinguishing systems,It has been widely used in the world.


    Basic parameters

    SpecificationsVolume(L)Nominal diameter of container valve(mm)

    Bottle group height

    H(mm)

    Bottle group outer diameter

    D(mm)

    QMP70/4.270DN321280Φ325
    QMP90/4.290DN321515Φ325
    QMP120/4.2120DN401345Φ415
    QMP150/4.2150DN401390Φ465
    QMP180/4.2180DN501380Φ520
    Maximum working pressure (50℃): 5.3MPa; filling pressure (20℃): 4.2MPa; maximum filling density ≤950Kg/mm³

    SpecificationsVolume(L)Nominal diameter of container valve(mm)

    Bottle group height

    H(mm)

    Bottle group outer diameter

    D(mm)

    QMP70/5.670DN321257Φ370
    QMP90/5.690DN321494Φ370
    QMP100/5.6100DN321494Φ370
    QMP120/5.6120DN321337Φ370
    QMP150/5.6150DN401375Φ470
    QMP180/5.6180DN401401Φ470
    Maximum working pressure (50℃): 8MPa; filling pressure (20℃): 5.6MPa; maximum filling density ≤1080Kg/m³

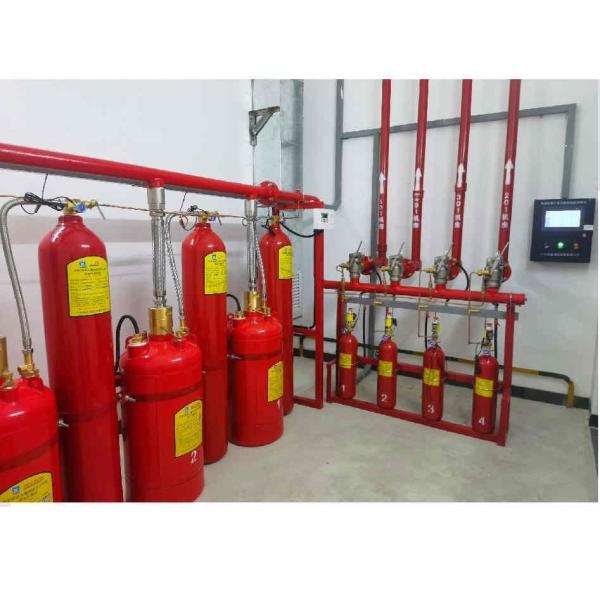

    Application site

    Computer room, communication room, power distribution room, library, archives,Museum, etc.

    Heptafluoropropane FM200 Gas Fire Extinguishing System 4.2Mpa / 5.6Mpa Working Pressure

    Company introduction:

    Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a professional manufacturer of fire protection facilities integrating R&D, production, design and sales services. The company has experts from the national fire protection industry standards committee and a group of professional technical service teams with more than ten years of experience in the fire protection industry, and will spare no effort to provide you with the most intimate and professional comprehensive technical solutions for fire protection engineering products. "Rongxiao" series products produced by the company have passed the national compulsory product certification and the national fixed fire extinguishing system inspection center, with reliable quality and stable performance, and the factory has passed the ISO9001 quality system certification.


    Frequently asked questions:

    Q1: Are you a manufacturer or a trading company? A1: We are manufacturers.

    Q2: How long is the delivery time? A2:10 days, which can be negotiated according to the quantity.

    Q3: How to deal with the fault? A3: During the warranty period, we will provide you with a remote emergency plan during working hours. During the free maintenance period, the company will replace spare parts or complete machines that have failed due to defects or quality problems free of charge.
