Flexible FM200 suspension system with fire-fighting safety factor
System Introduction

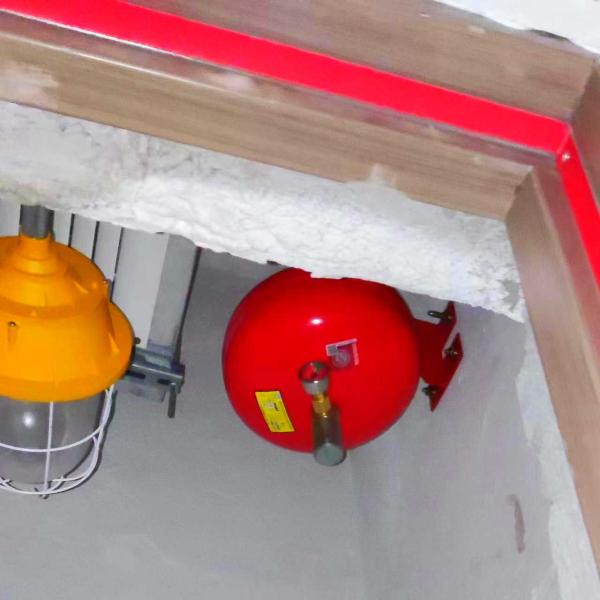

The suspended HFC-227ea fire extinguishing device
(temperature-sensitive type) consists of a fire extinguishing agent
storage bottle, a temperature-sensitive release component, a
suspension bracket, a pressure gauge, etc. It does not require the
installation of a fire extinguishing agent delivery pipeline, does
not require the installation of a dedicated storage plug-in room,
and does not require linkage with a fire alarm system. It is
installed in a suspended or wall-mounted manner. When a fire
occurs, the temperature-sensitive glass ball breaks, the
temperature-sensitive release component opens, and the fire
extinguishing agent is directly sprayed into the protected area.
There is no pipeline loss of the fire extinguishing agent, and the
fire extinguishing speed is faster and more efficient.
Main parameters of suspended FM200 HFC-227ea heptafluoropropane
fire extinguishing device
specifications | Filling quantity of extinguishing agent(kg) | Tank volume(L) | Storage pressure at 20℃ (Mpa) | Injection time (S) | Service temperature(℃) | Maximum protection volume(m³) |
| XQQW6/1.6 | 6 | 6 | 1.6 | ＜10 | 0~50 | 9 |
| XQQW10/1.6 | 10 | 10 | 1.6 | ＜10 | 0~50 | 15 |
| XQQW20/1.6 | 20 | 20 | 1.6 | ＜10 | 0~50 | 31 |
| XQQW30/1.6 | 30 | 30 | 1.6 | ＜10 | 0~50 | 47 |
| XQQC10/1.6 | 10 | 10 | 1.6 | ＜10 | 0~50 | 15 |
| XQQC20/1.6 | 20 | 20 | 1.6 | ＜10 | 0~50 | 31 |
| XQQC30/1.6 | 30 | 30 | 1.6 | ＜10 | 0~50 | 47 |
Applicable venues
Company introduction:
Guangzhou Rongan Fire Protection Equipment Co., Ltd. is a
professional manufacturer of fire protection facilities integrating
R&D, production, design and sales services. The company has
experts from the national fire protection industry standards
committee and a group of professional technical service teams with
more than ten years of experience in the fire protection industry,
and will spare no effort to provide you with the most intimate and
professional comprehensive technical solutions for fire protection
engineering products. "Rongxiao" series products produced by the
company have passed the national compulsory product certification
and the national fixed fire extinguishing system inspection center,
with reliable quality and stable performance, and the factory has
passed the ISO9001 quality system certification.
Frequently asked questions:
Q1: Are you a manufacturer or a trading company? A1: We are
manufacturers.
Q2: How long is the delivery time? A2:10 days, which can be
negotiated according to the quantity.
Q3: How to deal with the fault? A3: During the warranty period, we
will provide you with a remote emergency plan during working hours.
During the free maintenance period, the company will replace spare
parts or complete machines that have failed due to defects or
quality problems free of charge.
